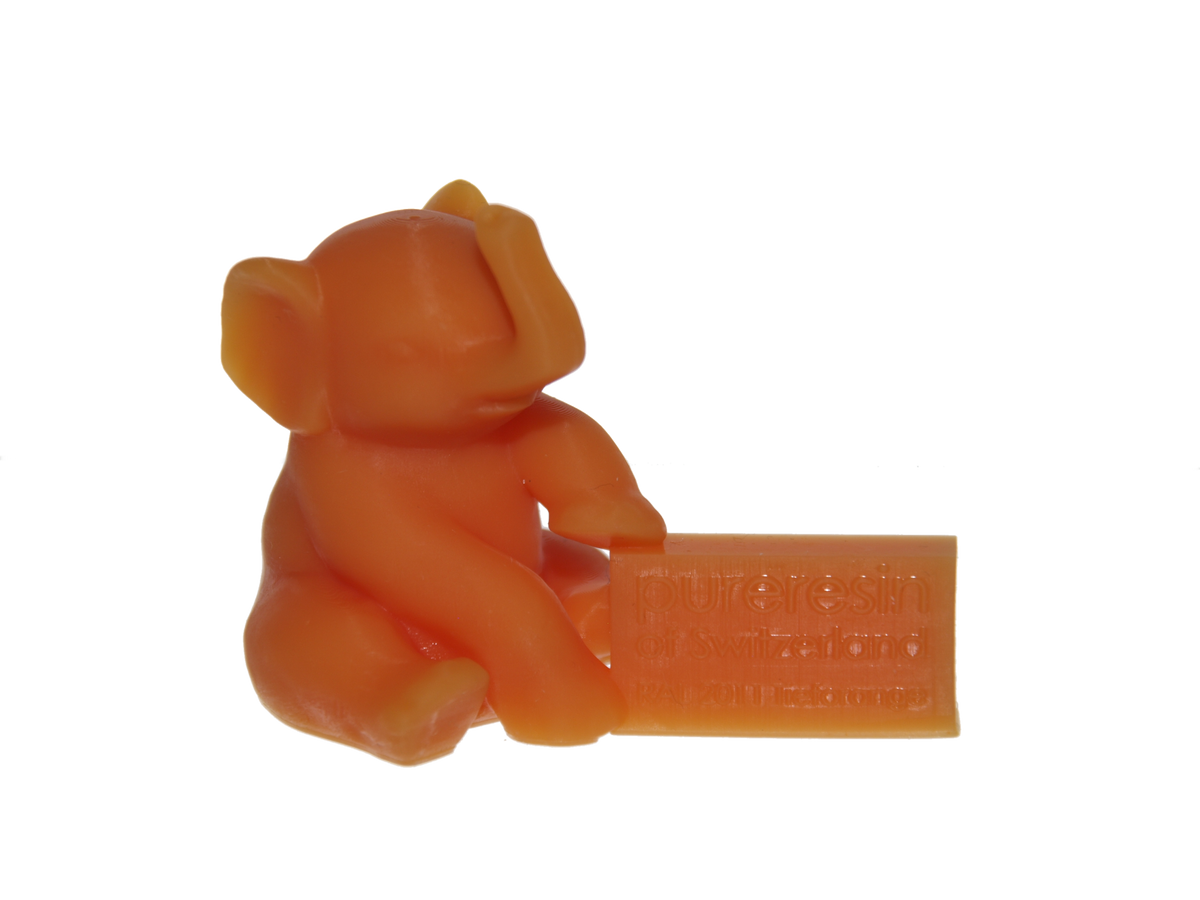

pureresin Standard A Tieforange RAL 2011 0.5kg
General
Pureresin Standard A is an alcohol washable standard resin. Pureresin Standard A is suitable for use with DLP or LCD/LED 3D printers. The use of high-quality raw materials creates a high-performance resin that can be processed with very short curing times.
Characteristics
- Very short curing times
- High level of detail
- Sharp contours
- Smooth object surfaces
Packaging
Pureresin Standard A is supplied in a light-protected HDPE bottle containing 0.5kg or 1kg.
storage
The resin should be stored in a dark, cool and dry place. Avoid direct sunlight and temperatures above 30°C to ensure the longest possible shelf life.
security
Read the safety data sheet carefully and follow the safety instructions. Only use the resin in a well-ventilated place. Wear nitrile gloves and safety goggles when working with resin.
processing
It is essential that you shake it before each use in order to achieve homogeneous mixing. During storage, the color particles may settle to the bottom of the bottle.
exposure times:
Base Layers: 15-40s
Remaining shifts: 1.5-15s
Pureresin Standard A can be cleaned with alcohol (e.g. isopropanol) after printing. The uncured resin dissolves in the alcohol. Never leave the printed part in the alcohol bath for more than 15 minutes to avoid damaging the printed part.
colour
The RAL color number and designation are intended as a guide only and are not intended to represent an exact specification. The effective colors are always in the similar color range as the RAL color mentioned. Full compliance with the RAL color mentioned is not guaranteed.
Viscosity 25°C
9-15Pa*s
Density 20°C
1.105g/cm3
Yield stress (DIN EN ISO 527)
28.4MPa
Elongation at yield (DIN EN ISO 527)
4.2%
Breaking stress (DIN EN ISO 527)
27.5MPa
Elongation at break (DIN EN ISO 527)
7.3%
Shore A
-
Shore D
61
