purefil

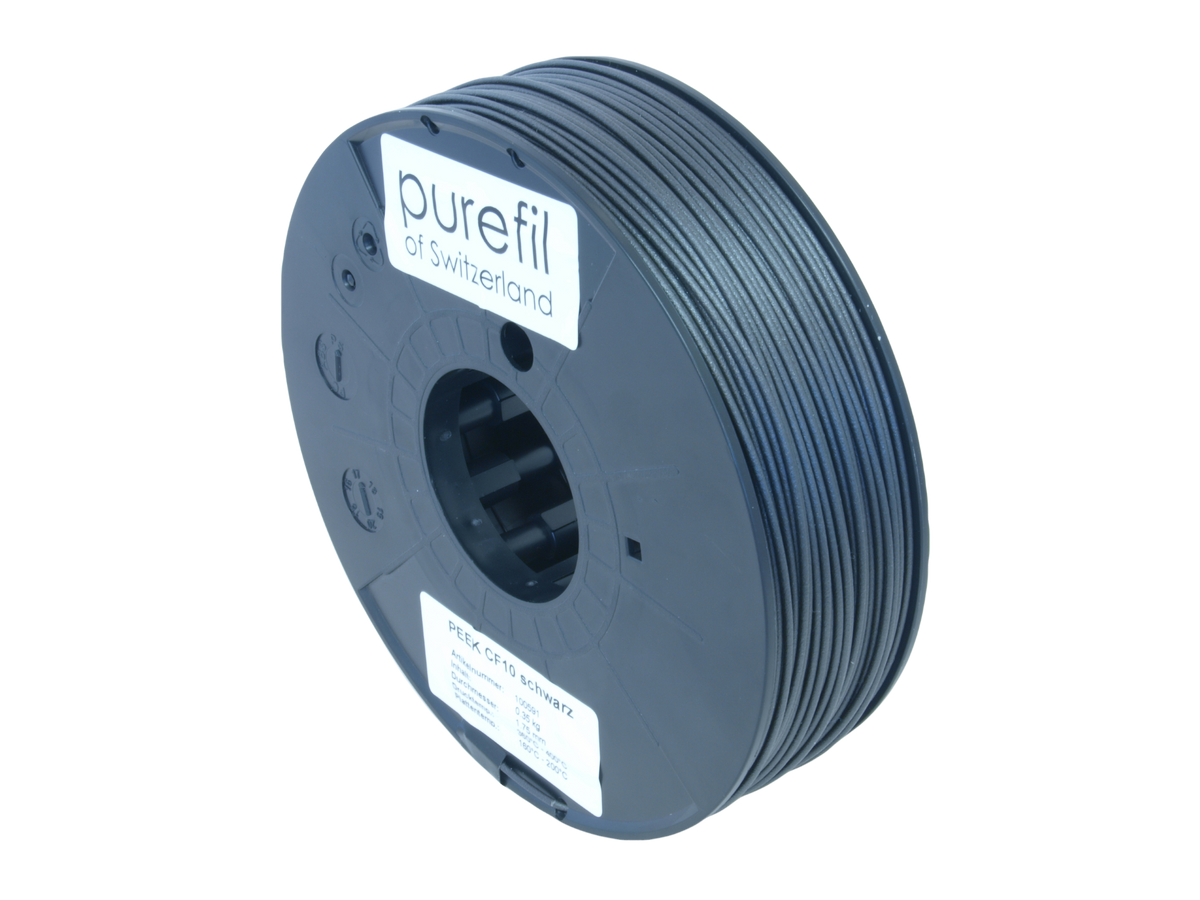

purefil PEEK CF10 0.35kg 1.75mm


Item number 100591
graduated prices:
Minimum quantity: 5 EUR 127.09 EUR 363.11 / kilogram
EUR 363.11 / kilogram
Minimum quantity: 10 EUR 120.40 EUR 344.00 / kilogram
EUR 344.00 / kilogram
Minimum quantity: 20 EUR 107.02 EUR 305.77 / kilogram
EUR 305.77 / kilogram

EUR 133.78 *
Content 350 gram
Unit price EUR 382.23 / kilogram
Delivery upon request

* Incl. VAT excl. Shipping


The use of high-quality raw materials creates a 3D printer filament that is particularly easy to process. Using a state-of-the-art manufacturing process, very low manufacturing tolerances are achieved, which leads to convincing printing results with all FDM 3D printers. Each coil is sealed in a high-quality bag.

- Made in Switzerland

- small diameter and roundness tolerances

- easy to print

PEEK CF10 is a high temperature, high strength, thermoplastic with a melting point of 350°C. PEEK filament is very chemical resistant. Only highly concentrated sulfuric acid can damage PEEK. PEEK is mainly used in the automotive industry, aerospace, high-voltage technology and medical technology. Although PEEK CF10 filament is 70% lighter than metals with similar properties, it can exhibit much of the same thermal and mechanical stability. In other words, the power-to-weight ratio is a lot better than with metal. The carbon reinforcement fibers create an ultimate high-strength material which has proven itself for various heavy-duty applications. In relation to degenerative manufacturing processes such as milling, no material is wasted with FDM printing, which has a direct positive effect on the cost-effectiveness of the components. The problem with printing PEEK filament lies in the high temperatures that have to be applied to melt the material. To print PEEK CF10, 380°C to 450°C are required.

Characteristics:

- High level of mechanical properties combined with very good temperature resistance up to 250°C (it only melts at 343°C)

- High abrasion resistance

- Water and steam resistance

- The chemical resistance of PEEK is very good, it can only be dissolved in concentrated sulfuric acid

- PEEK is often used instead of metallic materials

- Low UV resistance - brittle from exposure to sunlight

- difficult to glue, print and paint

- good electrical insulator

- slightly electrostatically charged

Material:PEEK CF10

Diameter: 1.75 +/- 0.05mm

Weight: 1kg

Nozzle temperature: 380-450 ° C

Printing table temperature: 160-200 ° C

Item ID 170
Condition New
Age rating 3 and older
Model 100591
Manufacturer purefil
Manufacturing country Switzerland
Content 350 gram
Weight 500 g
Net weight 350 g
Dimensions 202×202×70mm
Customs tariff number 3916.9000

technical datasheet DE Materialdatenblatt PEEK CF10 purefil.pdf

technical datasheet EN

technical datasheet FR

technical datasheet IT
